我公司承建的河北省承德環能熱電有限責任公司#3、#4爐項目煙氣凈化系統提標改造工程于2025年08月22日通過72+24小時試運行。
The FGC system upgrading for Units #3 & #4 of Chengde Huanneng Thermal Power Co., Ltd. in Hebei Province—constructed by HEPT—has successfully passed the 72+24-hour full-load trial operation since 22nd.Aug 2025.

本次垃圾焚燒爐煙氣脫硝系統項目提標改造范圍為2×500t/d生活垃圾焚燒發電項目#4爐SCR低溫脫硝系統（SGH+SCR）+催化劑和#3、#4爐小蘇打干法脫酸系統（SDS）的設計、系統整合、制造、優化改造。其中包含#4爐引風機的設計、安裝和改造。
The scope of this flue-gas denitration system upgrade for the waste incineration lines covers the design, system integration, fabrication and optimization of: a low-temperature SCR denitration system (SGH + SCR) + catalyst for Unit #4 of the 2×500 t/d waste-to-energy plant and a sodium-bicarbonate dry deacidification system (SDS) for Units #3 and #4. It also includes the design, installation and modification of the induced-draft fan for Unit #4.

在“72+24”小時不間斷滿負荷試運行階段，此項目通過技改升級華星東方SCR低溫脫硝系統展現出顯著優勢——通過提升120-180℃溫區的反應活性，使氨逃逸率降低90%以上；配合催化劑成型工藝優化，增強催化劑孔隙均勻性及耐硫性，延長使用壽命，減少停機更換損失。其出口排放的NOx濃度穩定控制在35-45mg/Nm3（遠低于50mg/Nm3設計標準），氨逃逸濃度低至0.1-0.8mg/Nm3（遠低于8mg/Nm3限值），較傳統系統降低40%以上蒸汽耗量，直接削減年度運行成本約350萬元（蒸汽單價按120元/t）。
During the uninterrupted 72+24-hour full-load trial, the project demonstrated the striking advantages of HEPT’s upgraded low-temperature SCR denitration system: boosts activity in the 120–180 °C window and reduces NH? slip by over 90 %; optimized shaping gives the catalyst more uniform pores and better sulfur tolerance, extending service life and shortening outage time. NOx at the stack was steadily held at 35–45 mg/Nm3, well below the 50 mg/Nm3 design limit; NH? slip was as low as 0.1–0.8 mg/Nm3, far under the 8 mg/Nm3 cap; steam consumption dropped by more than 40 % compared with conventional systems, cutting annual operating costs by about CNY 3.5 million (steam priced at CNY 120/t).
這一成果源于華星東方二十余年深耕環保領域的技術積淀與低溫脫硝系統創新突破：通過在引進三菱重工先進技術的基礎上，歷經數百次工況適配實驗與十余代技術迭代，持續優化催化劑配方與反應器結構，最終開發出更契合中國復雜氣候、多樣燃料特性及嚴苛排放標準的低溫脫硝解決方案。
This achievement stems from HEPT’s over twenty years of technical expertise in the environmental field and its breakthroughs in low-temperature denitration systems. Building on MHIEC’ advanced technology, the company has carried out hundreds of adaptation experiments and over ten generations of technical iterations, continuously optimizing catalyst formulations and reactor structures. The result is a low-temperature denitration solution better suited to China’s complex climate, diverse fuel characteristics and stringent emission standards.
當前研發團隊正推進150℃超低溫運行試驗，探索催化劑在更寬溫度窗口（120-180℃）的穩定性能，并配套開發智能氨水噴淋控制系統，通過前期設計流場模擬實現精確噴氨及氨分布，實現“精準噴射-高效轉化-零逃逸”閉環控制，預計可進一步降低氨耗10%-15%。
The R&D team is now validating 150 °C ultra-low-temperature operation and developing an intelligent aqueous-ammonia spray control system. Up-front CFD modelling of the flow field will enable precise NH? injection and distribution, creating a closed loop of "accurate spraying–efficient conversion–zero slip", expected to cut ammonia consumption by a further 10–15 %.
該技改方案不僅解決了傳統SCR系統“低溫效率衰減、氨耗高、逃逸超標”三大行業難題，更構建了“設計-制造-運維”全鏈條成本優化模型。結合項目采用的國際領先爐排爐工藝與成熟煙氣凈化技術，實現了垃圾焚燒發電的“無害化處理+資源化利用”雙重目標——通過焚燒發電將廢棄物轉化為電能，達成減量化與資源化；同時通過超低排放技術助力河北地區生態環境改善與空氣質量提升，完美契合國家“雙碳”戰略與工業綠色轉型需求，為客戶創造“環保達標+經濟降本”的雙重價值。
This retrofit package not only solves the three industry pain points of conventional SCR—"low-temperature efficiency decay, high ammonia consumption, excessive slip"—but also builds a full-chain cost-optimization model covering design, manufacture and O&M. Coupled with the world-class grate furnace and proven gas-cleaning technologies adopted in the project, it achieves the dual goals of "harmless treatment + resource utilization" for waste-to-energy: waste is converted into electricity while emissions are kept ultra-low. The solution thus helps improve the ecological environment and air quality in Hebei, aligns perfectly with China’s "dual-carbon" strategy and green industrial transformation, and delivers the dual value of "compliance + cost reduction" for customers.

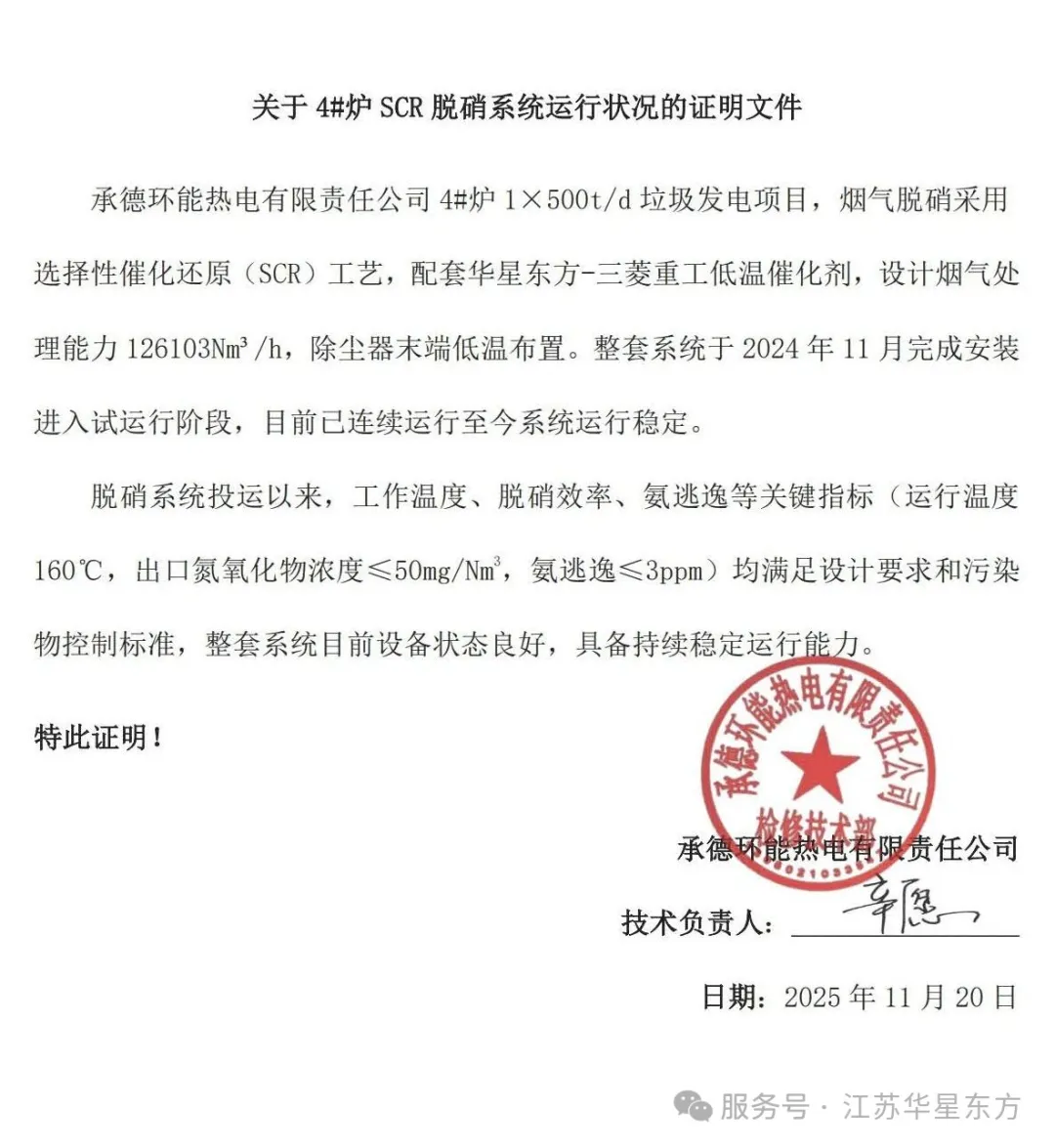

承德環能熱電有限責任公司#3、#4煙氣凈化系統提標改造工程自2024年11月完成安裝進入試運行階段以來，已連續穩定運行超過一年，該項目采用我司選擇性催化還原（SCR）工藝，配套華星東方引進優化的三菱重工低溫催化劑，目前系統運行狀態良好，工作溫度、脫硝效率、氨逃逸等核心參數持續穩定達標，且具備持續穩定運行能力，驗證了華星東方低溫脫硝系統在低溫工況下的可靠性與高效性。
Since the completion of installation and the commencement of trial operation in November 2024, the FGC system upgrade for Units #3 and #4 of Chengde Huanneng Thermal Power Co., Ltd. has been running continuously and stably for over one year. The project adopts HEPT’s selective catalytic reduction (SCR) process, equipped with introduced & optimized MHIEC’s low-temperature catalysts. At present, the system is in good operating condition, with core parameters such as working temperature, denitration efficiency, and ammonia slip remaining stable and compliant, demonstrating sustained and reliable operation. This outcome verifies the reliability and high efficiency of HEPT’s low-temperature denitration system under low-temperature working conditions.

華星東方在河北省的業績涵蓋包括：保定一期、二期、衡水、衡水安平、定州、滄州一期、石家莊、石家莊廈能炘、石家莊行唐、唐山曹妃甸、唐山灤州、唐山豐潤、唐山潔城、唐山遷安、承德圍場、保定順平、唐山一期、二期、承德張家口北、廊坊固安、廊坊香河、廊坊三河、邢臺沙河、邢臺威縣、邢臺巨鹿、邯鄲魏縣等多個項目。
HEPT’s track record in Hebei Province covers an extensive portfolio of projects, including: Baoding Phase I & II, Hengshui and Hengshui-Anping, Dingzhou, Cangzhou Phase I, Shijiazhuang, Shijiazhuang Xianengxin, and Shijiazhuang Xingtang, Tangshan Caofeidian, Luanzhou, Fengrun, Jiecheng, Qian’an, Chengde Weichang, Baoding Shunping, Tangshan Phases I & II, Chengde-Zhangjiakou North, Langfang Gu’an, Xianghe, Sanhe, Xingtai Shahe, Weixian, Julu, Handan Weixian, etc.
